In this NativeScript tutorial, I'll show you five native iOS properties you can alter to create any kind of shadow in your iOS NativeScript apps.

TL;DR

If you prefer a video of the tutorial, here it is:



Introduction

In NativeScript 6, elevation for Android was enabled but this is still not supported in iOS. In this article, we'll show you a way in which you can create shadows in your NativeScript iOS applications. We'll look at 5 properties that you can use to create Native shadows for any view on iOS. We'll also see how you can create custom shapes from shadows. With these techniques, you'll be able to create shadows of any shape, size and depth.

Let's Get Right to It!

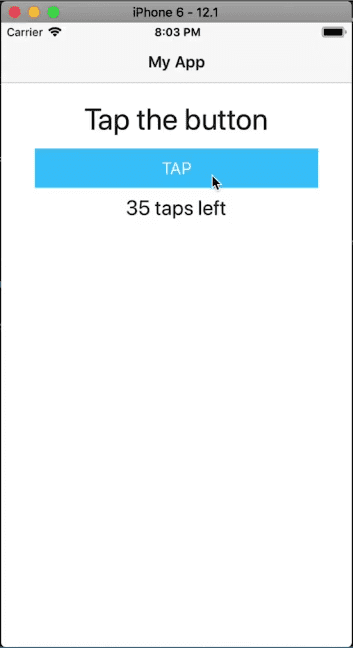

Starting out, we have the following simple app containing a button and two labels.


Starting app


The code:


<!-- main-page.xml -->

<Page xmlns="http://schemas.nativescript.org/tns.xsd" navigatingTo="navigatingTo" class="page">
  <Page.actionBar>
    <ActionBar title="My App" icon="" class="action-bar">
    </ActionBar>
  </Page.actionBar>

  <StackLayout class="p-20">
    <Label text="Tap the button" class="h1 text-center"/>
    <Button text="TAP" tap="{{ onTap }}" class="btn btn-primary btn-active"/>
    <Label text="{{ message }}" class="h2 text-center" textWrap="true"/>
  </StackLayout>
</Page>

// main-page.ts

import { EventData } from "tns-core-modules/data/observable";
import { Page } from "tns-core-modules/ui/page";
import { HelloWorldModel } from "./main-view-model";

export function navigatingTo(args: EventData) {
  const page = <Page>args.object;
  page.bindingContext = new HelloWorldModel();
}

// app.css

@import '~nativescript-theme-core/css/core.light.css';

.btn {
  font-size: 18;
}

We'll add a shadow to the button.


Let's start by adding a loaded event to our button:


<Button loaded="onBtnLoaded" text="TAP" tap="{{ onTap }}" class="btn btn-primary btn-active"/>

Next, install the following plugin. It contains type information about the native platforms as exposed by the NativeScript framework.


$ npm i tns-platform-declarations --save-dev

Before you can use the plugin, create a reference.d.ts file in the root directory of your project and add the following references:


// references.d.ts

/// <reference path="./node_modules/tns-platform-declarations/ios.d.ts" />
/// <reference path="./node_modules/tns-platform-declarations/android.d.ts" />

Then add the following settings to your tsconfig.json file. We want to skip type checking of the declaration files since they are huge files and so will slow down builds.


// tsconfig.json

"compilerOptions": {
  ...
  "skipLibCheck": true
  ...
}

Now we can get started with adding a shadow for the button. We'll do it by manipulating the following 5 properties:

1 of 5: Color

Let's start with setting the shadow's color. There are different ways that we can set the color. We can use the Color module from the NativeScript framework as shown below.


// main-page.ts

import { EventData } from "tns-core-modules/data/observable";
import { Page, View } from "tns-core-modules/ui/page";
import { HelloWorldModel } from "./main-view-model";
import { isIOS } from "tns-core-modules/platform";
import { Color } from "tns-core-modules/color";

export function navigatingTo(args: EventData) {
  const page = <Page>args.object;
  page.bindingContext = new HelloWorldModel();
}

export function onBtnLoaded(args: EventData) {
  const view = args.object as View;

  if (isIOS) {
    const iosUIView = view.ios as UIView;
    iosUIView.layer.shadowColor = new Color('black').ios.CGColor;
  }
}

We use isIOS to ensure the code doesn't crash on Android since we are executing code that is specific to the iOS platform. After getting the NativeScript color, we convert it to an iOS color.


You can also get an iOS color using UIColor as shown below.


export function onBtnLoaded(args: EventData) {
  const view = args.object as View;

  if (isIOS) {
    const iosUIView = view.ios as UIView;
    iosUIView.layer.shadowColor = UIColor.blackColor.CGColor;
  }
}

2 of 5: Opacity

Next, let's set an opacity for the shadow.


export function onBtnLoaded(args: EventData) {
  const view = args.object as View;

  if (isIOS) {
    const iosUIView = view.ios as UIView;
    iosUIView.layer.shadowColor = UIColor.blackColor.CGColor;
    iosUIView.layer.shadowOpacity = .5;
  }
}

Setting the color and opacity are the minimum requirements needed to create a shadow. Let's see what we have so far:

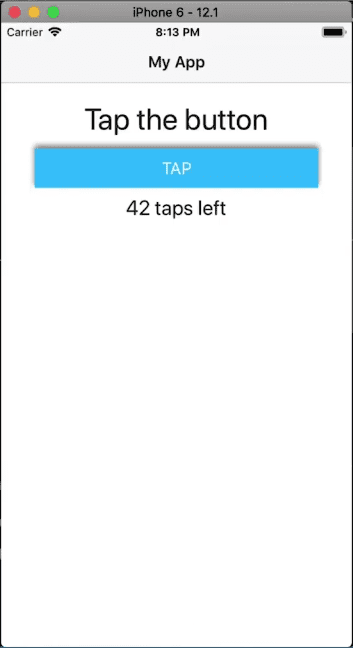

Low opacity


Let's make the shadow a bit more visible:


iosUIView.layer.shadowOpacity = 1;

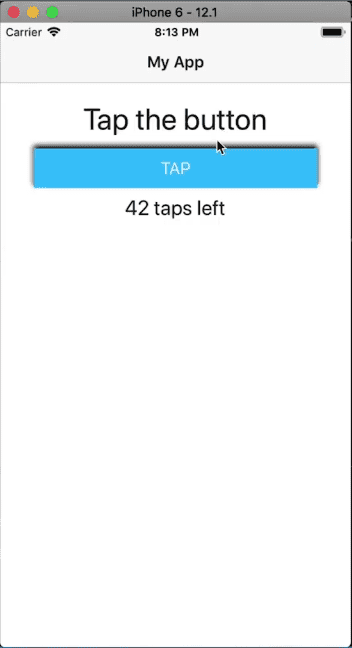

High opacity

3 of 5: Radius

Next, let's add a radius to the shadow. A large value gives a more diffused shadow:


export function onBtnLoaded(args: EventData) {
  const view = args.object as View;

  if (isIOS) {
    const iosUIView = view.ios as UIView;
    iosUIView.layer.shadowColor = UIColor.blackColor.CGColor;
    iosUIView.layer.shadowOpacity = 1;
    iosUIView.layer.shadowRadius = 40;
  }
}

Large radius


A smaller radius gives a tighter shadow:


iosUIView.layer.shadowRadius = 4;

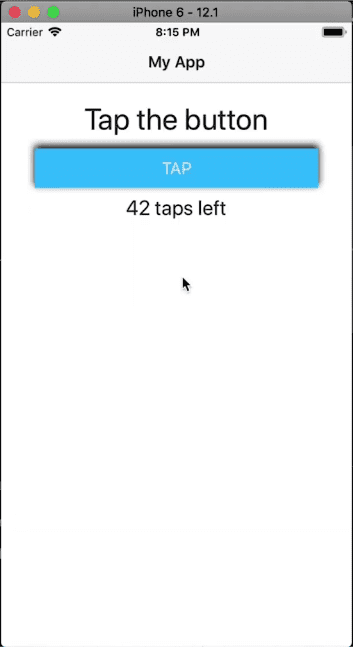

Small radius

4 of 5: Offset

Below, we set an offset on the shadow. This moves the shadow some distance away from the view.


export function onBtnLoaded(args: EventData) {
  const view = args.object as View;

  if (isIOS) {
    const iosUIView = view.ios as UIView;
    iosUIView.layer.shadowColor = UIColor.blackColor.CGColor;
    iosUIView.layer.shadowOpacity = 1;
    iosUIView.layer.shadowRadius = 4;
    iosUIView.layer.shadowOffset = CGSizeMake(10, 10);
  }
}

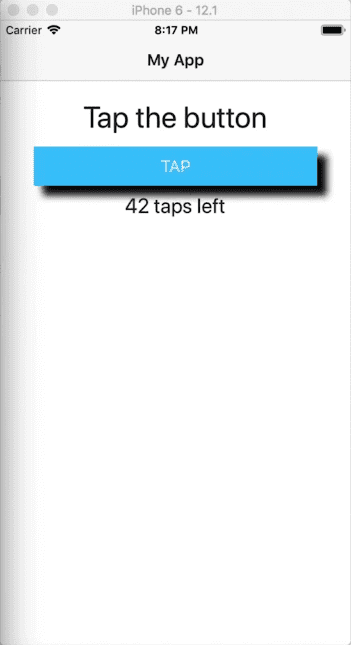

Offset

5 of 5: Path

To finish off, let's look at the shadow path. We can use this to draw different shapes.


export function onBtnLoaded(args: EventData) {
  const view = args.object as View;

  if (isIOS) {
    const iosUIView = view.ios as UIView;
    iosUIView.layer.shadowColor = UIColor.blackColor.CGColor;
    iosUIView.layer.shadowOpacity = 1;
    iosUIView.layer.shadowRadius = 4;
    iosUIView.layer.shadowOffset = CGSizeMake(10, 10);
    iosUIView.layer.shadowPath = UIBezierPath.bezierPathWithRect(CGRectMake(1, 1, 200, 200)).CGPath;
  }
}

The above code creates a square shadow.

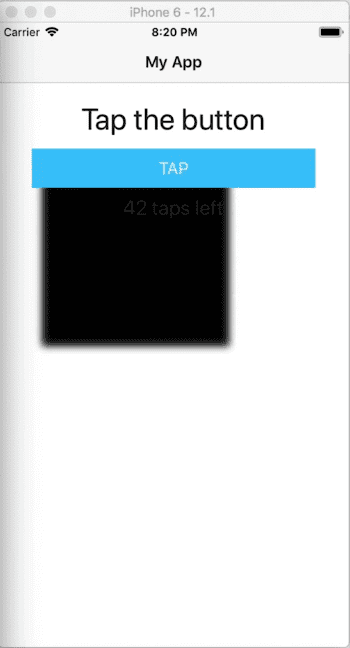

Path


As you can see, the shadow is a different shape from the button.


Let's see how we can create a different shaped view that has a shadow shaped in the same way. Modify the code as shown:


We start off by turning the button into an octagon:


<!-- main-page.xml -->

<Page xmlns="http://schemas.nativescript.org/tns.xsd" navigatingTo="navigatingTo" class="page">
  <Page.actionBar>
    <ActionBar title="My App" icon="" class="action-bar">
    </ActionBar>
  </Page.actionBar>

  <StackLayout class="p-20">
    <Label text="Tap the button" class="h1 text-center"/>
    <Button text="TAP" tap="{{ onTap }}" class="button"/>
    <Label text="{{ message }}" class="h2 text-center" textWrap="true"/>
  </StackLayout>
</Page>

// app.css

@import '~nativescript-theme-core/css/core.light.css';

.button {
  font-size: 18;
  clip-path: polygon(30% 0%, 70% 0%, 100% 30%, 100% 70%, 70% 100%, 30% 100%, 0% 70%, 0% 30%);
  background-color: brown;
  height: 200;
  weight: 200;
  color: white;
}

We set a polygon clip-path on the button that gives it an octagon shape.

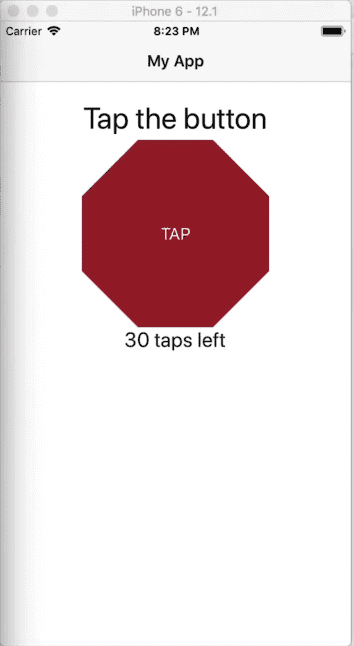

Octagon button


To add a similarly shaped shadow to the view, modify the code as shown.


<!-- main-page.xml -->

<Page xmlns="http://schemas.nativescript.org/tns.xsd" navigatingTo="navigatingTo" class="page">
  <Page.actionBar>
    <ActionBar title="My App" icon="" class="action-bar">
    </ActionBar>
  </Page.actionBar>

  <StackLayout class="p-20">
    <Label text="Tap the button" class="h1 text-center"/>
    <AbsoluteLayout>
      <Label loaded="onShadowLoaded" class="shadow"/>
      <Button text="TAP" tap="{{ onTap }}" class="button"/>
    </AbsoluteLayout>
    <Label text="{{ message }}" class="h2 text-center" textWrap="true"/>
  </StackLayout>
</Page>

// app.css

@import '~nativescript-theme-core/css/core.light.css';

.shadow {
  height: 1;
  width: 1;
  background-color: white;
}

.button {
  font-size: 18;
  clip-path: polygon(30% 0%, 70% 0%, 100% 30%, 100% 70%, 70% 100%, 30% 100%, 0% 70%, 0% 30%);
  background-color: brown;
  height: 200;
  weight: 200;
  color: white;
}

// main-page.ts

import { EventData } from "tns-core-modules/data/observable";
import { Page, View } from "tns-core-modules/ui/page";
import { HelloWorldModel } from "./main-view-model";
import { isIOS } from "tns-core-modules/platform";
import { Color } from "tns-core-modules/color";

export function navigatingTo(args: EventData) {
  const page = <Page>args.object;
  page.bindingContext = new HelloWorldModel();
}

export function onShadowLoaded(args: EventData) {
  const view = args.object as View;

  if (isIOS) {
    const iosUIView = view.ios as UIView;
    iosUIView.layer.shadowColor = UIColor.blackColor.CGColor;
    iosUIView.layer.shadowOpacity = .7;
    iosUIView.layer.shadowRadius = 8;
    iosUIView.layer.shadowOffset = CGSizeMake(2, 2);
    iosUIView.layer.shadowPath = UIBezierPath.bezierPathWithCGPath(polygonPath(100, 100, 120, 8, 22)).CGPath;
  }
}

function radians(a) {
  let b = Math.PI * a / 180;
  return b;
}

function polygonPointArray(sides: number, x: number, y: number, radius: number, offset: number): CGPoint[] {
  let angleT = (360 / sides);
  let angle = radians(angleT);
  let cx = x; // x origin
  let cy = y; // y origin
  let r = radius; // radius of circle
  var i = 0;
  var points: CGPoint[] = [];
  while (i <= sides) {
    let xpo = cx + r * cos(angle * i - radians(offset));
    let ypo = cy + r * sin(angle * i - radians(offset));
    points.push(CGPointMake(xpo, ypo));
    i++;
  }
  return points;
}

We place the button inside an absolute layout and also add a Label. We'll create a shadow on this label, so we removed the loaded event from the button and put one on the label, then in main-page.ts, we implement the event handler.


If you run the app, you'll see the octagonal view with a similarly shaped shadow.

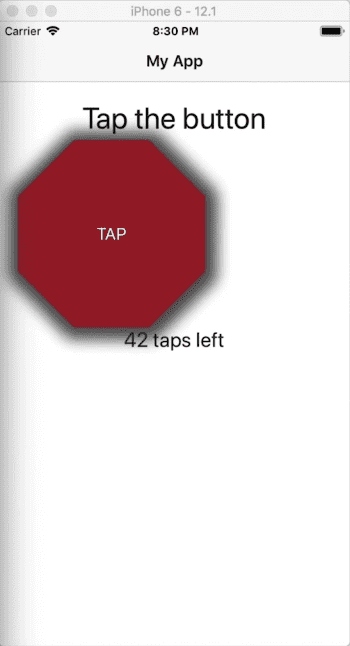

Octagon
